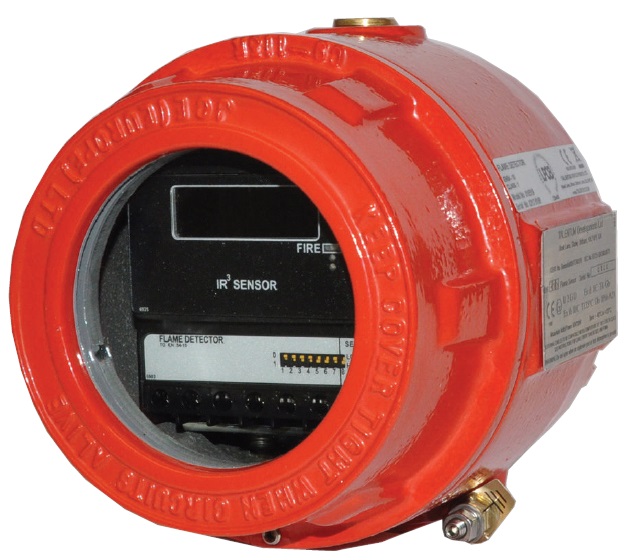

The Flameproof IR3 Flame Detector is designed for use in hazardous environments in indoor and outdoor applications. It is sensitive to low-frequency flickering infra-red radiation emitted by flames during combustion. The sensor operates even through a layer of oil, dust, water vapour or ice. Baseefa has certified the detector for compliance to standards EN 60079-0, EN 60079-1 and EN 61241-1
ATEX & IECEx certified: II2GD Ex d IIC T4 Gb Ex tb IIICT135 °C Db IP66 A21(Zones 1, 21, 2 and 22)
Selectable output options: Conventional two-wire, 4-20mA, Latching or Non-latching, Relay Contacts – Fire/Fault, Pre alarm
Class 1 sensitivity to EN54-10 detects 0.1m2 fire at 25m
High optical interference immunity
Selectable response speed
Optical self test
Low power consumption
IP66 rated
Supply voltage 14 to 30Vdc
Operating temperature -10°C to +55°C
